Temperature related Parameters

Windchill | Interval Values of Windchill | Apparent Temperature | Interval Values of Apparent Temperature | Heat Index | Humidex | Wet-bulb Temperature | Potential Temperature | Interval Values of Potential Temperature | Equivalent Potential Temperature |Wet-bulb Potential Temperature | Wet-bulb Globe Temperature | Lake Temperatures

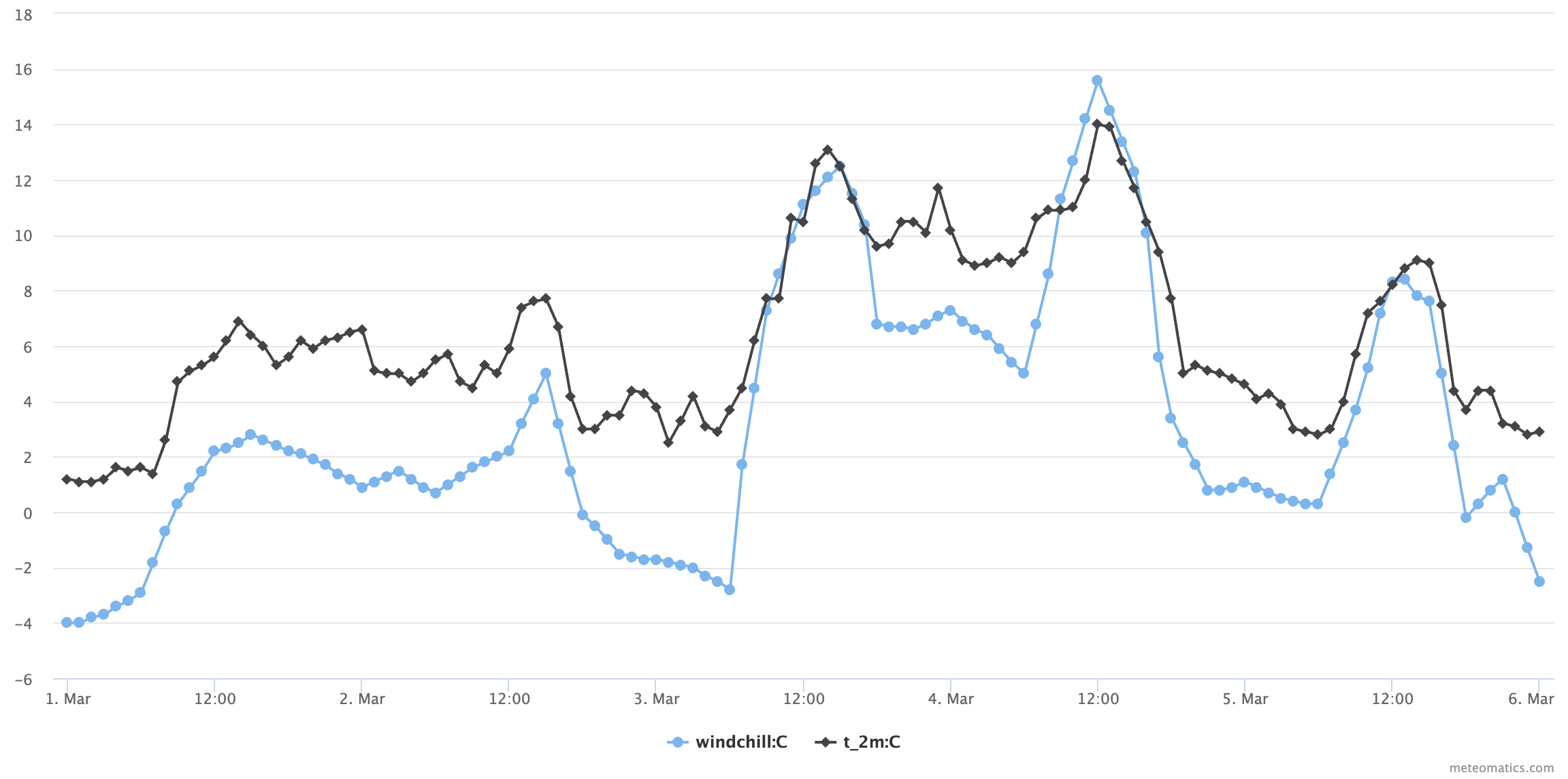

Windchill

Gives the wind chill in °C as defined by Wikipedia1 .

windchill:C

Available units: C, F, K

Example:

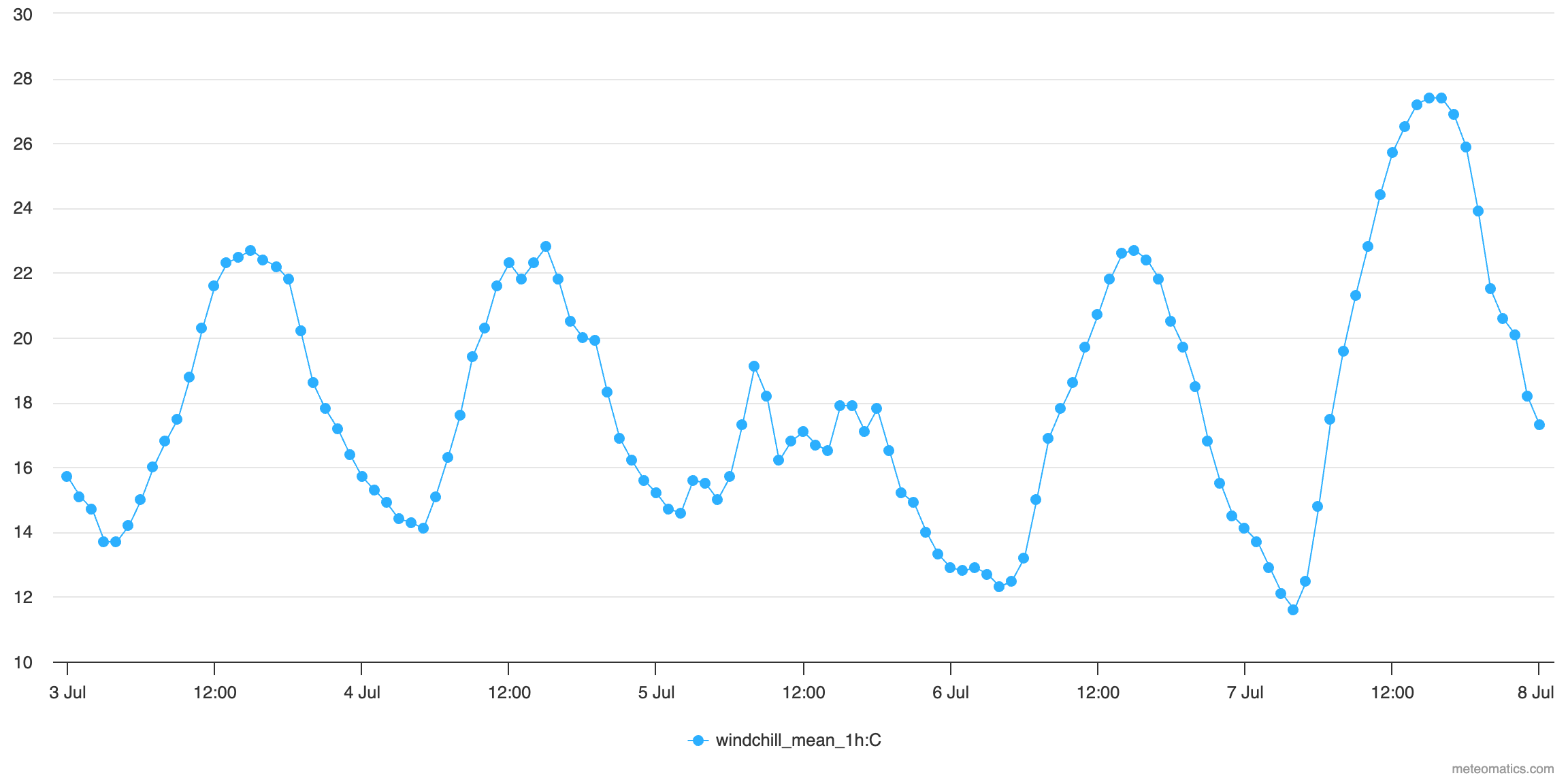

Interval Values of Windchill

Gives the mean, maximum or minimum windchill over the indicated interval.

windchill_<measure>_<interval>:C

Available measure: min, mean, max
Available interval: 1h, 2h, 3h, 6h, 12h, 24h

Example:

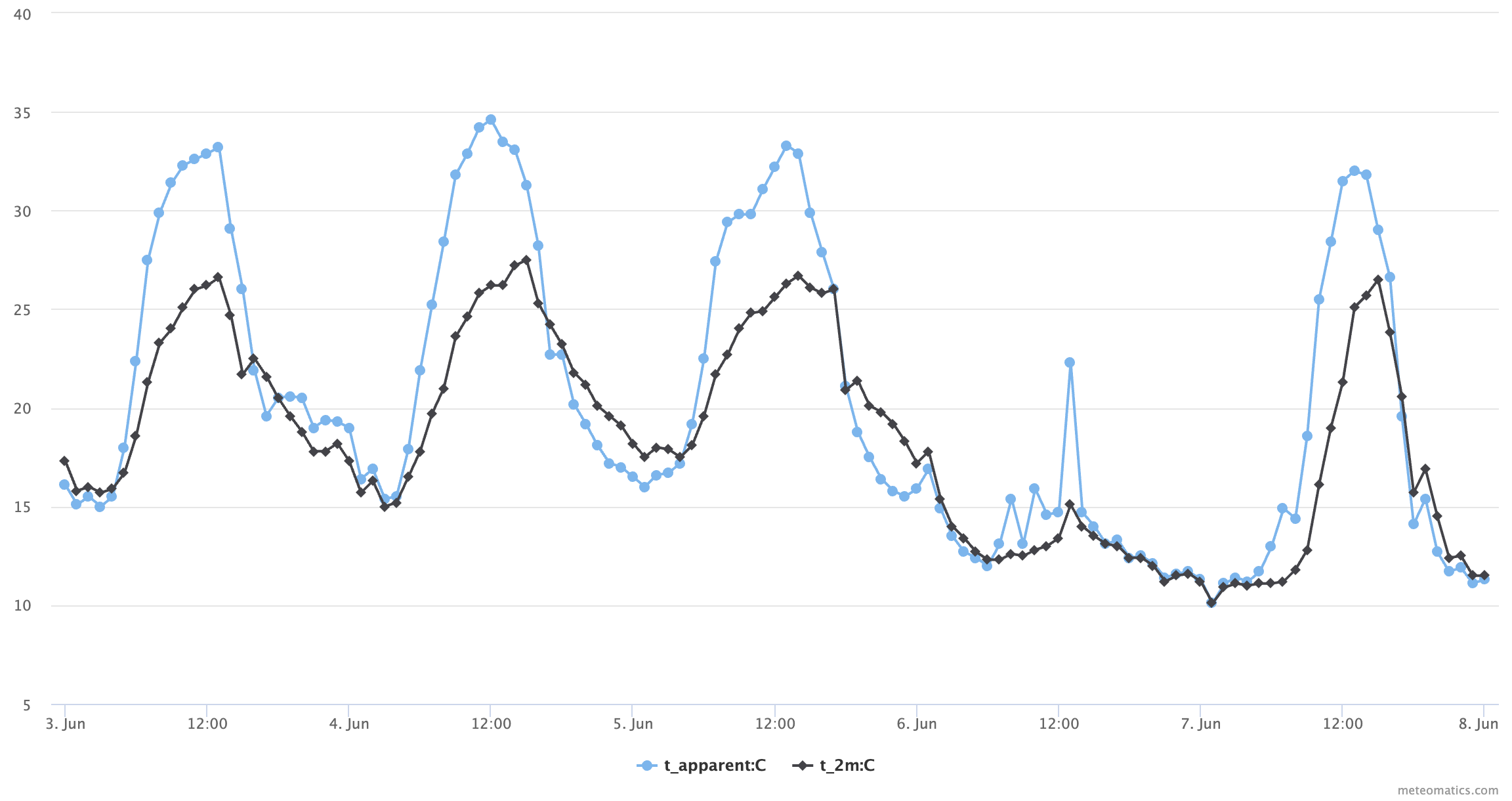

Apparent Temperature

The apparent temperature is a measure for the human thermal comfort. On the basis of the air temperature, the apparent temperature is computed considering effects of relative humidity, wind speed and solar radiation.

t_apparent:<unit>

Available units: C, F, K

Example:

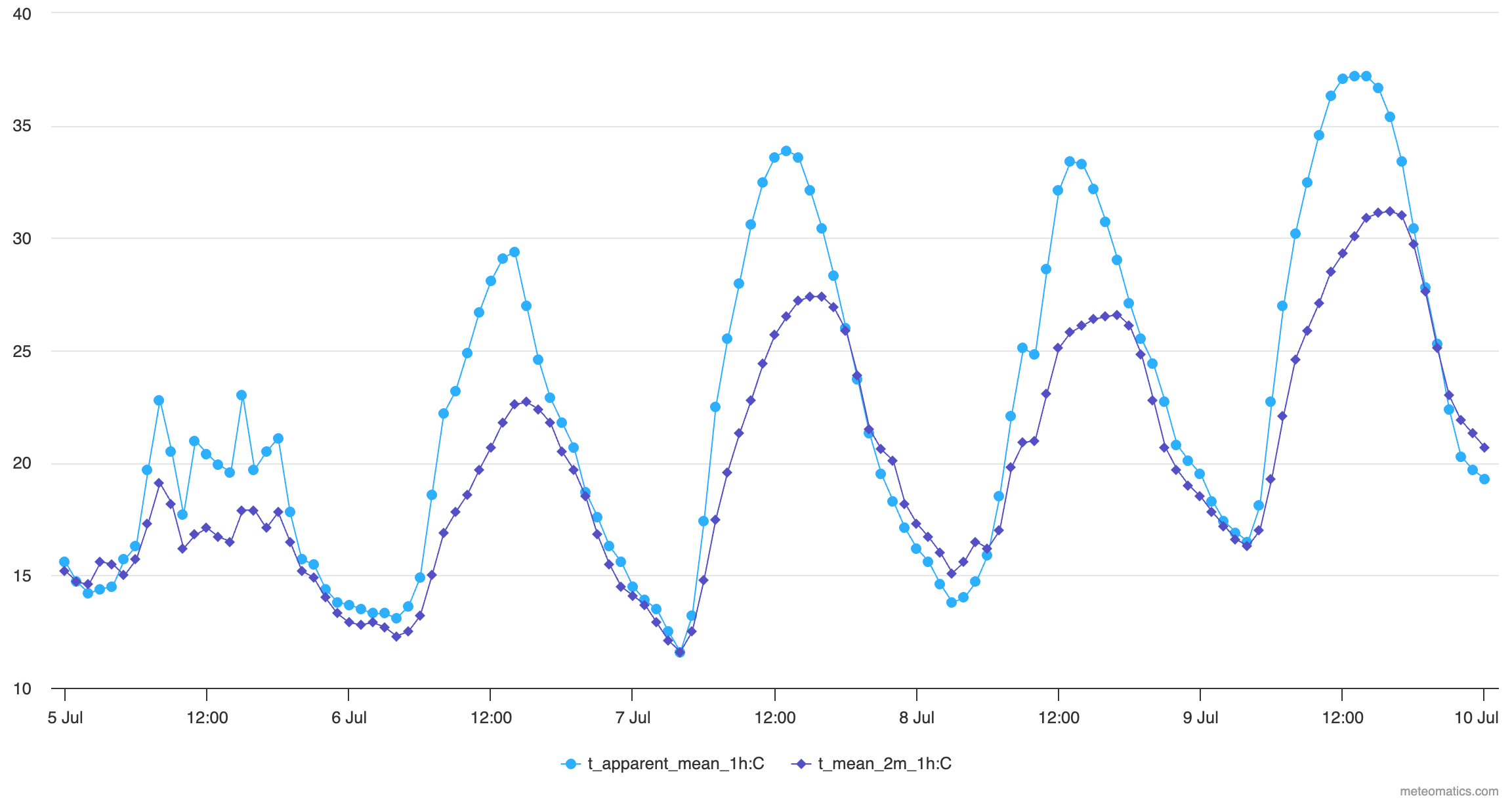

Interval Values of Apparent Temperature

Gives the mean, maximum or minimum apparent temperature over the indicated interval.

t_apparent_<measure>_<interval>:<unit>

Available measure: min, mean, max
Available interval: 1h, 2h, 3h, 6h, 12h, 24h
Available units: C, F, K

Example:

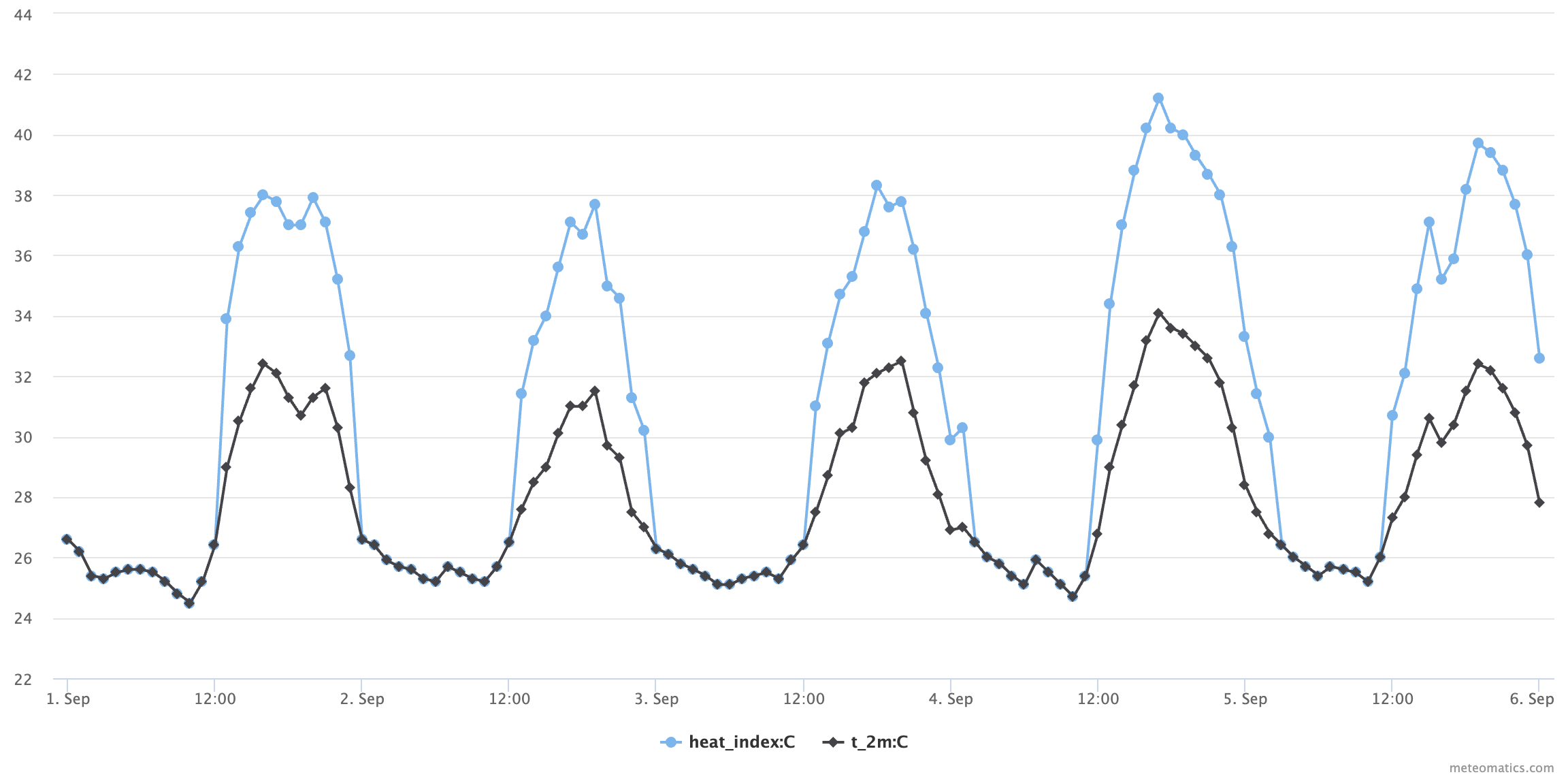

Heat Index

The Heat Index is a parameter that describes how humidity affects the perception of warm temperatures in shaded areas. Since the human body cools itself by evaporating sweat from the skin, higher humidity attenuates the effect of this mechanism. The index is computed using air temperature and relative humidity, while for temperatures below 27°C the heat index equals air temperature. The Heat Index can be used to assess the danger of heat exhaustion and strokes when performing outdoor activities.

heat_index:<unit>

Available units: C, F, K

Heat IndexDescription
26 - 32 °CCaution: fatigue is possible, activity could result in heat cramps
32 - 41 °CExtreme caution: heat cramps and heat exhaustion possible, activity could result in heat stroke
41 - 54 °CDanger: heat cramps and heat exhaustion are likely, heat stroke is probable
>54 °CExtreme danger: heat stroke is imminent

Example:

Humidex

The Humidex is the Canadian equivalent of the Heat Index. It also describes the effects of humidity in combination with high temperatures. The computation of this index requires air temperatures and dew point temperatures.

humidex:<unit>

Available units: C, F, K

Heat IndexDescription
20 - 29 °CLittle to no discomfort
30 - 39 °CSome discomfort
40 - 45 °CGreat discomfort; avoid exertion
>45 °CDangerous, heat stroke possible

Example:

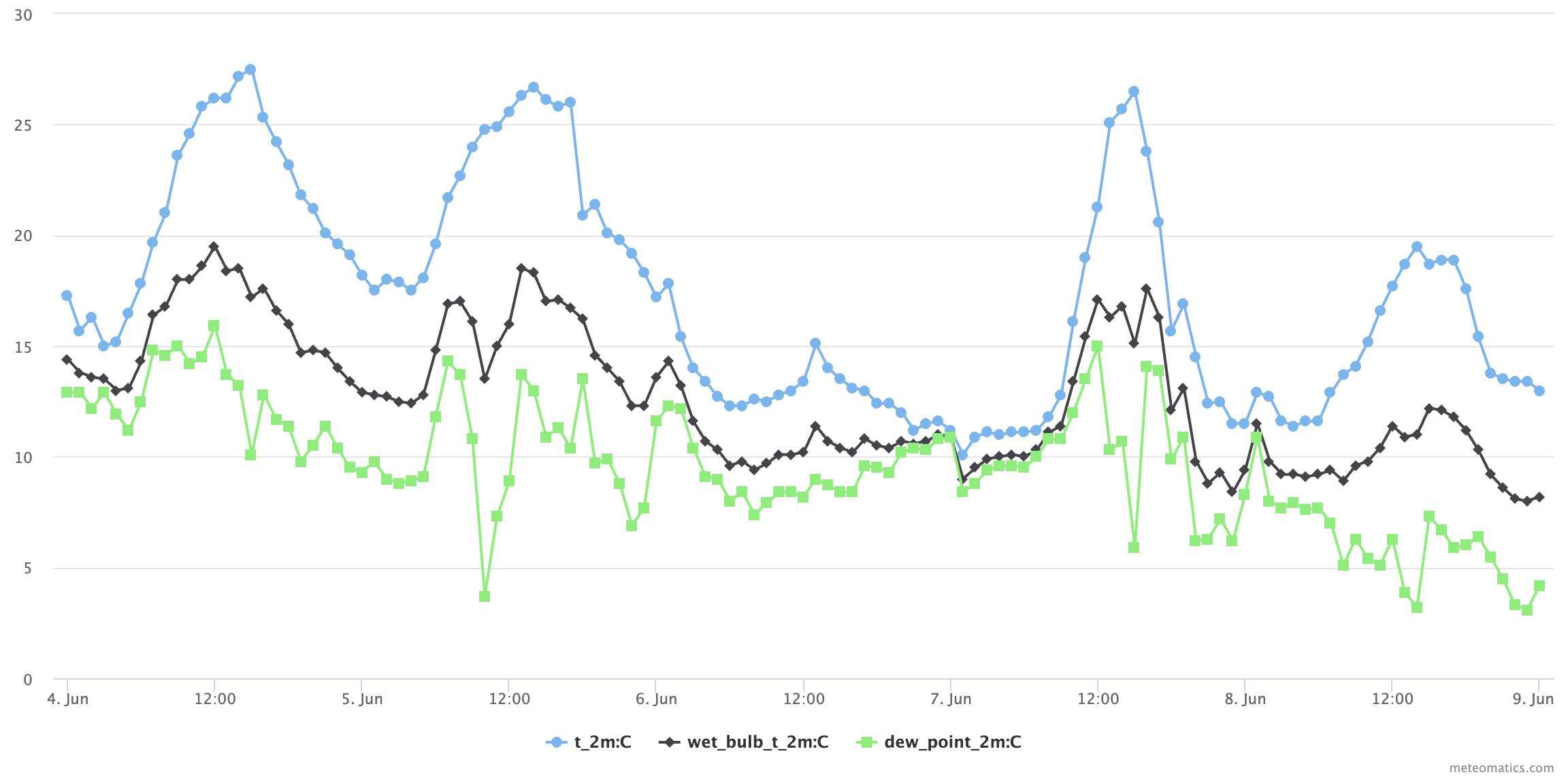

Wet-bulb Temperature

The wet-bulb temperature is the lowest temperature that can be reached by direct evaporative cooling. Thereby, the release of water from a saturated surface and the water absorption capacity of the surrounding atmosphere are in equilibrium. Due to the cooling by evaporation, the wet-bulb temperature always falls below the air temperature in dependence of the relative humidity. The difference between wet-bulb temperature and air temperature is larger if the air is drier. The wet-bulb temperature exceeds the dew point temperature, except for relative humidities of 100 %, where air temperature, wet-bulb temperature and dew point temperature coincide.

wet_bulb_t_<level>:<unit>

Available units: C, F, K

Available levels:
2m, 100m, 1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa

Available flight levels:
FL10 - FL605 (continuously)

Example:

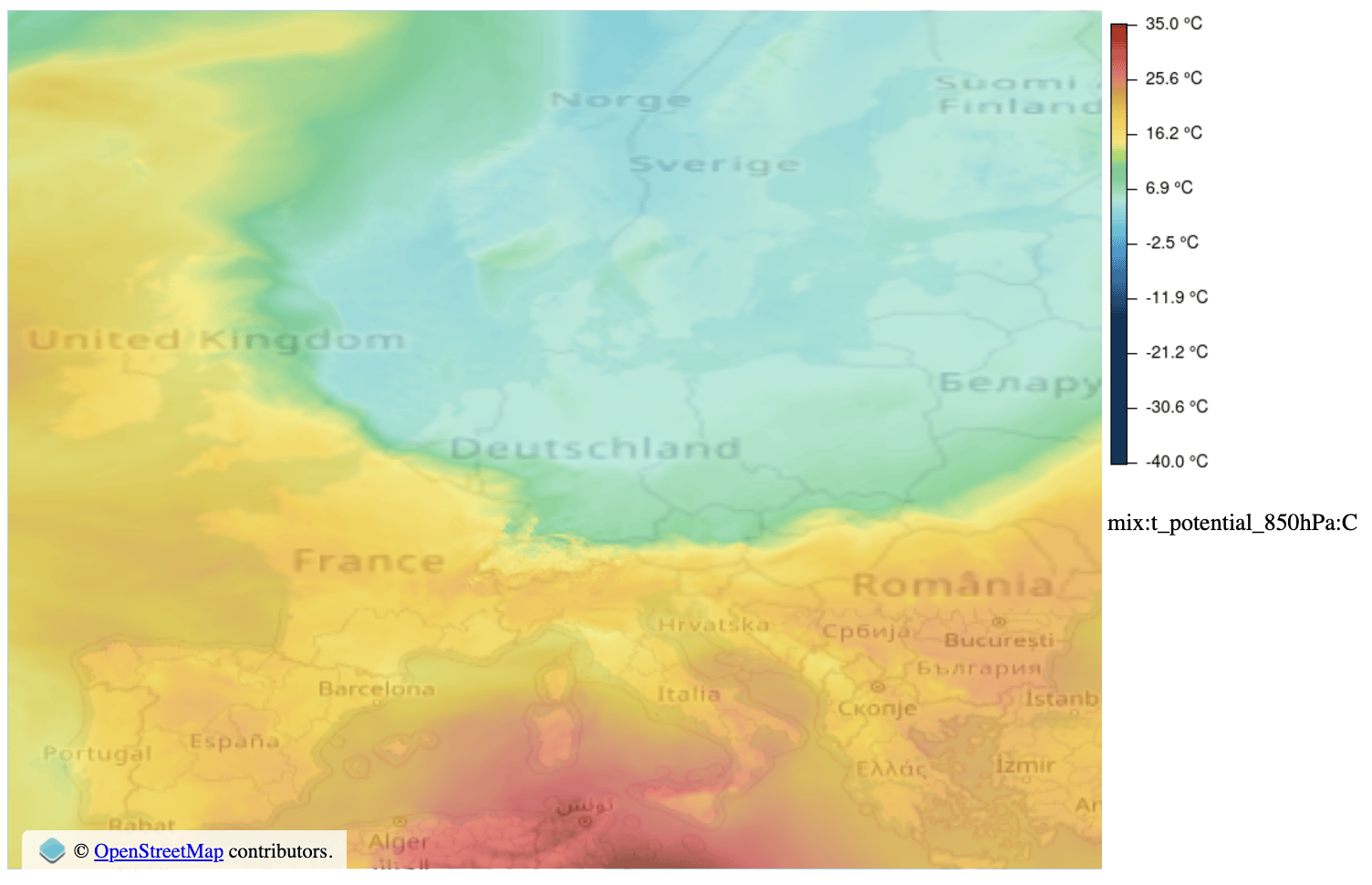

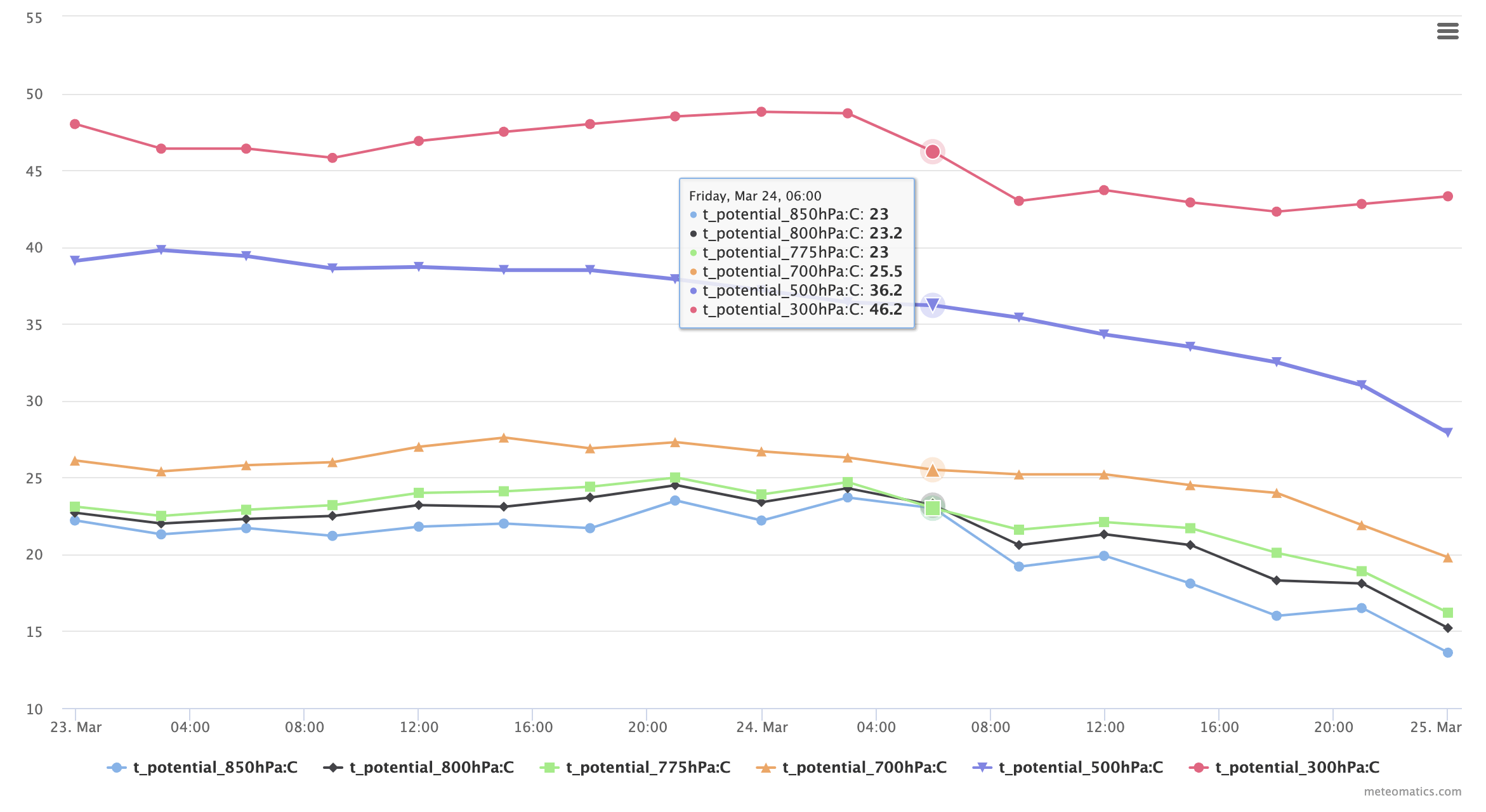

Potential Temperature (θ)

The temperature a dry (unsaturated) air parcel would have if it was brought adiabatically (without heat exchange) to a standard pressure level of 1000 hPa. The potential temperature is a useful measure as its vertical gradient determines the dry static stability of the atmosphere. If the potential temperature increases with height, the atmosphere is stable. If the potential temperature decreases with height, the atmosphere is unstable and convection is favored. The concept of potential temperature becomes less useful when applied to saturated air as potential temperature is not conserved during phase changes of water.

t_potential_<level>:<unit>

Available levels:
1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa, 10hPa

Available flight levels:FL10 - FL900 (continuously)

Available units: C, F, K

Examples:

Interval Values of Potential Temperature (θ)

Gives the mean, maximum or minimum potential temperature at the indicated level over the indicated duration.

t_potential_<measure>_<level>_<interval>:<unit>

Available levels:
1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa, 10hPa

Available flight levels:FL10 - FL900 (continuously)

Available units: C, F, K

Available measures: min, mean, max

Available intervals: 1h, 2h, 3h, 6h, 12h, 24h

Example

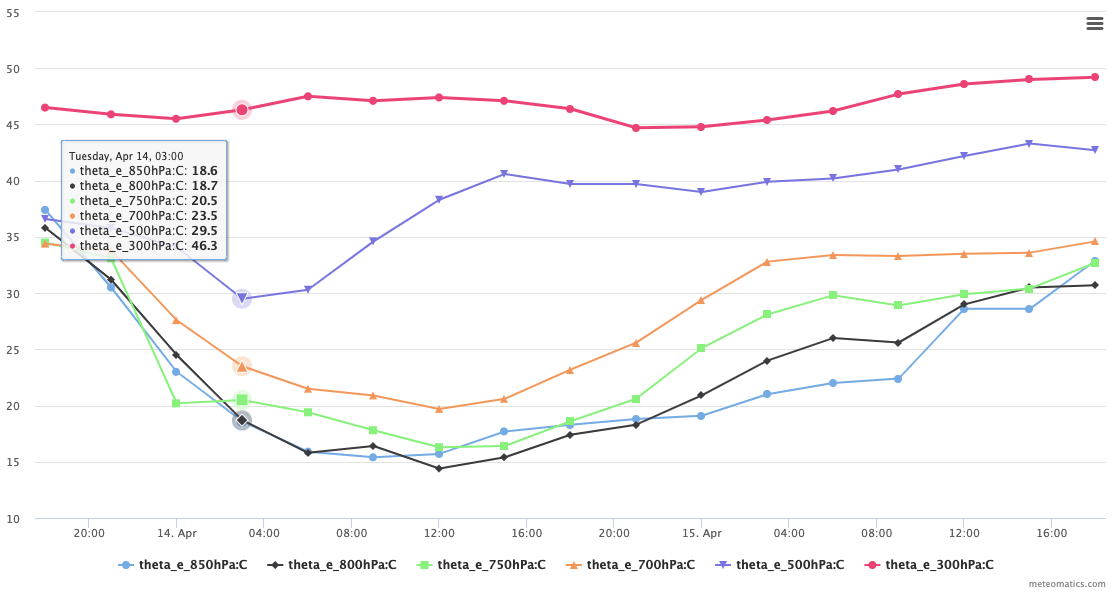

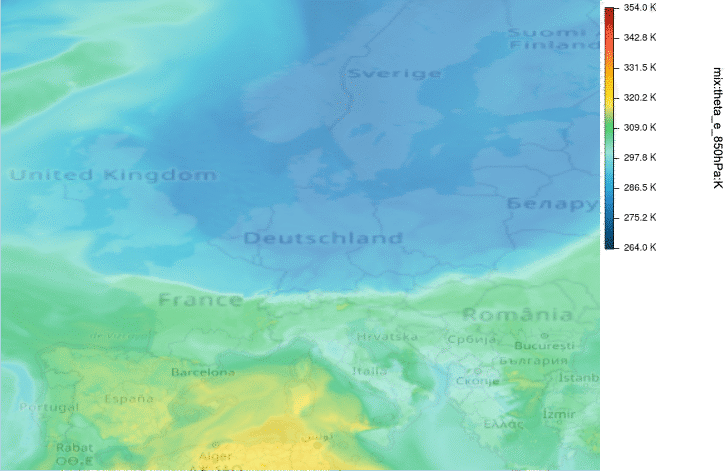

Equivalent Potential Temperature (θe)

θe is a conserved quantity during vertical motions in the atmosphere. It is the temperature an air parcel would reach if all the water vapor condensed and its latent heat was released, while the parcel is lifted adiabatically to 1000 hPa. The concept of θe is a powerful tool in order to differentiate between different air masses, which facilitates the identification of frontal systems. Moreover, it allows the assessment of atmospheric stability. If θe decreases with height, the atmosphere is unstable and convection is favored.

theta_e_<level>:<unit>

Available levels: 2m - 20000m (continuously), 1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa

Available units: C, F, K

Examples:

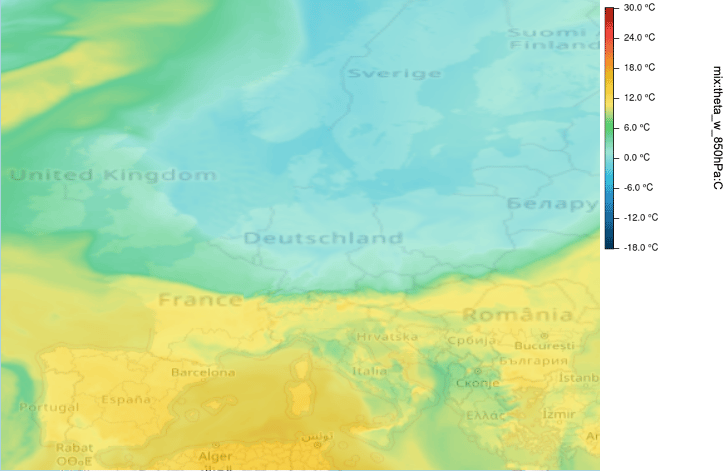

Wet-bulb Potential Temperature (θw)

θw is a direct measure of the moist thermal energy of the atmosphere and a useful parameter to determine different air masses (i.e. frontal systems). It describes the temperature of an air parcel that is lifted dry adiabatically to saturation and subsequently brought to 1000 hPa moist adiabatically.

theta_w_<level>:<unit>

Available levels: 2m - 20000m (continuously), 1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa

Available units: C, F, K

Examples:

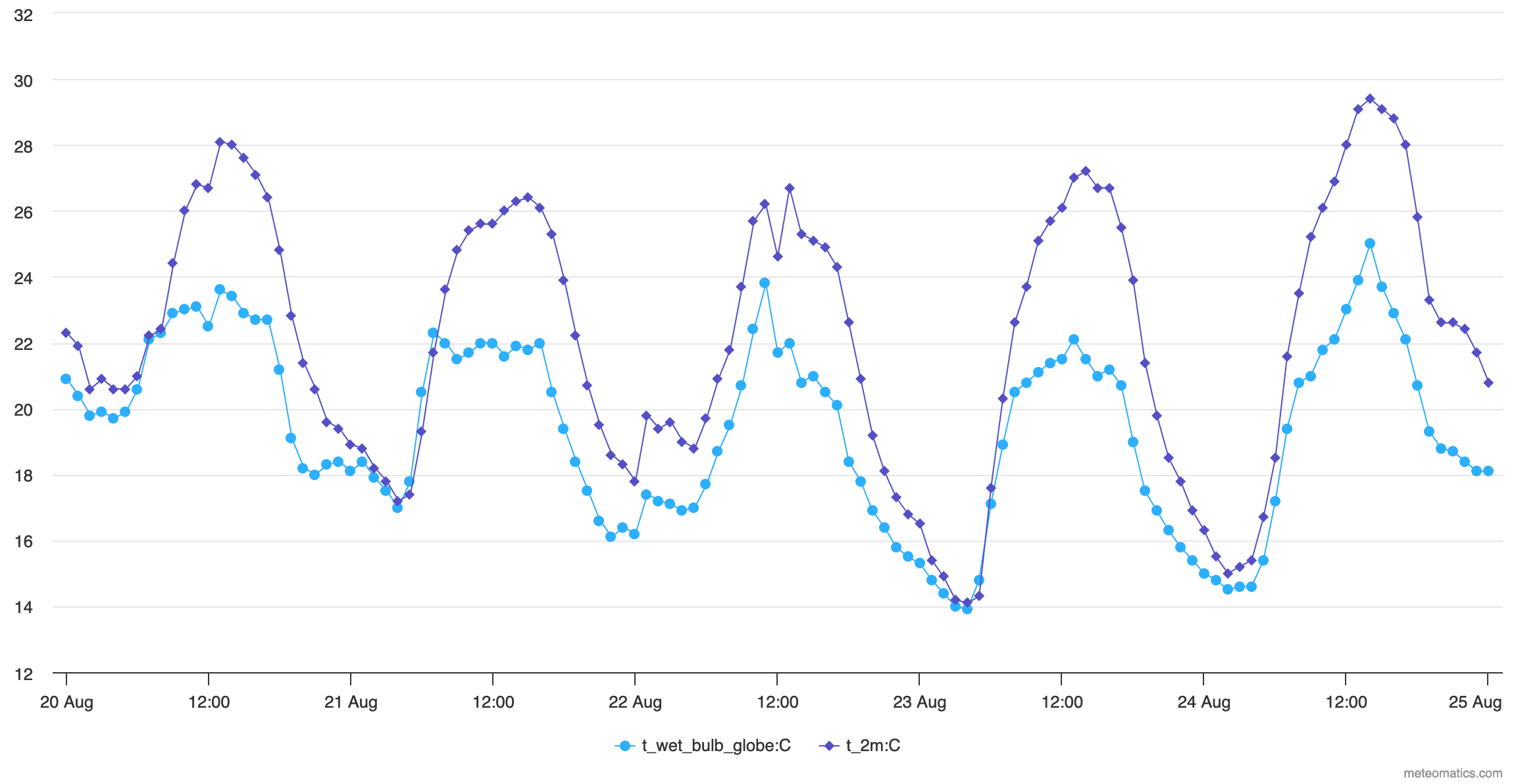

Wet-bulb Globe Temperature

The wet-bulb globe temperature is a type of apparent temperature used to estimate the effect of temperature, humidity, wind speed (wind chill), and visible and infrared radiation (usually sunlight) on humans. It is used by industrial hygienists, athletes, sporting events and the military to determine appropriate exposure levels to high temperatures.

t_wet_bulb_globe:<unit>

Available units: C, F, K

Below is the guideline developed by the American College of Sports Medicine (ACSM) for continuous activities not based on location. This guideline may vary slightly depending on the athlete's fitness level, acclimatization, and location.

WBGT (°C)WBGT (°F)Risks
18.4-22.265-72Risk of heat stress and other heat illness begins to rise; high-risk individuals should be monitored
22.2-25.672-78Risk for all active individuals is increased
25.6-27.878-82Risk for unfit, nonacclimatized individuals is high
>27.8>82Very high risk for all individuals; cancel activity or competition
